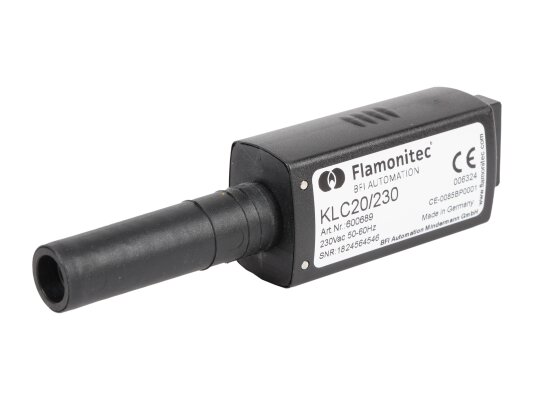

Weishaupt KLC20/230 flame sensor
Weishaupt600689
Número de pieza alternativo
Weishaupt We600689
Precio: DOP 26000
Descripción
The Weishaupt KLC20/230 flame sensor, art: 600689, is used for continuous monitoring of flame combustion during the operation of heating systems. It operates from a 230V, 50/60 Hz network. It is part of the safety system and controls the operation of the burner. It transmits data on detection to the burner control unit, which immediately interrupts the fuel supply upon receiving a signal of flame failure.
Characteristics and features:
- front measurement device;
- compact housing made of heat-resistant plastic;
- continuous flame combustion control;
- fast response to flame loss;
- simple installation at the place of operation.
The flame sensor is used to equip Weishaupt burners.
Características
Número de pieza del fabricante: 600689Operating mode: intermittentOperating ambient temperature: from -20 to 60 °CVoltage: from 0 to 230 VDirection of illumination: frontalFlame sensor type: infrared
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
