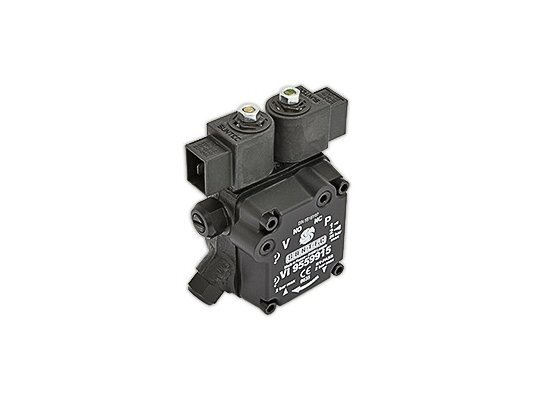

Suntec AT2 V 55 C K 9605 4P 0700 burner pump
Weishaupt24140306022
Número de pieza alternativo
Weishaupt We24140306022
Precio: DOP 53000
Características
Número de pieza del fabricante: 24140306022Return pressure: 2 barInlet pressure: 2 barShaft diameter: 8 mmTorque: 0.1 N·mFactory installations for high pressure: 22 barFactory settings for low pressure: 9 barPerformance at 7 bar pressure and 5 cSt viscosity: 68 l/hMaximum rotation speed: 3,600 rpmMaximum pressure of the solenoid valve: 25 barNominal rotation speed: 2,850 rpmSolenoid valve consumption: 9 WStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOperating viscosity: from 2 to 12 mm²/sPressure gauge port: ⅛ inchPump series: AT2: two operating modes (1 nozzle / 2 pressure modes), with built-in solenoid valve in lVacuum gauge port: ⅛ inchValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withOil temperature: from 0 to 60 °C in the pumpDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftNozzle pressure range: from 8 to 25 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchNozzle outlet: ⅛ inchType of pumped liquid: dieselInstallation method: sleeve ⌀32 mmDegree of protection: IP54
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
