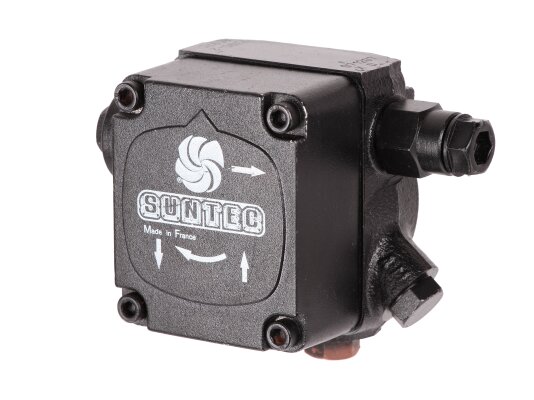

Weishaupt AE 97 C 7390 2M burner pump
Weishaupt601623
Número de pieza alternativo
Weishaupt We601623Weishaupt We60162-3
Descripción
Specifications:
- temperature of the pumped liquid from 0 to +60°C;
- viscosity of the medium from 2 to 75 mm²/s;
- high performance;
- the weight of the equipment is 1.3 kg, which simplifies its installation in the system;
- nominal pressure of the fuel mixture on the nozzle - from 8 to 28 atm.
Características
Número de pieza del fabricante: 601623Installing the bypass plug: M: no bypass plug, return line closed to single pipe systemBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchReturn pressure: 2 barTorque: 0.14 N·mMaximum rotation speed: 3,600 rpmNominal rotation speed: 2,850 rpmPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hStrainer: Open area: 20 cm²Strainer: Opening size: 150 µmOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulation without locking functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftNozzle outlet: ⅛ inchOil temperature: from 0 to 60 °C in the pumpPerformance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hSuction and return line: ¼ inch NPTF (taper thread)Shaft design: one cavityFactory pressure setting: 14 barModel type: without electromagnetic valveNozzle pressure range: from 8 to 28 barShaft diameter: 8 mmInlet pressure: 2 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselInstallation method: sleeve ⌀32 mmPump series: AE: base model without locking function
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
