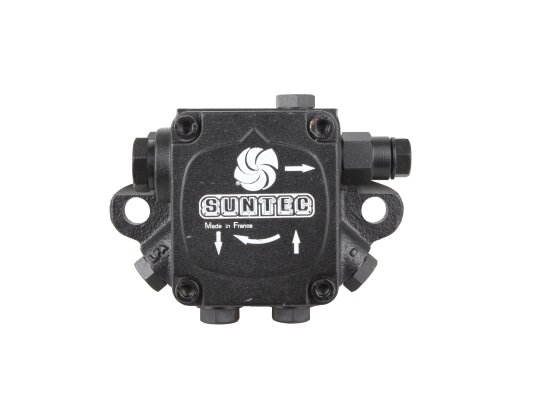

Suntec D 57 A 7271 3P burner pump
Suntec
Número de pieza alternativo
Ecoflam P111Lamborghini 04032550
Precio: DOP 17400
Características
Operating viscosity: from 2 to 75 mm²/sPerformance at 14 bar pressure and 75 cSt viscosity: 76 l/hPerformance at 14 bar pressure and 20 cSt viscosity: 72 l/hBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaVacuum gauge port: ⅛ inch or ¼ inchPressure gauge port: ⅛ inchPump series: D: pressure adjustment without locking functionReturn pressure: 2 barTorque: 0.1 N·mMaximum rotation speed: 3,600 rpmNominal rotation speed: 2,850 rpmStrainer: Open area: 12 cm²Strainer: Opening size: 530 µmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightValve function: pressure regulation without locking functionModel type: without electromagnetic valveNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilInlet pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 28 barFactory pressure setting: 14 barShaft design: one cavityOil temperature: from 0 to 90 °C in the pumpInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemSuction and return line: ¼ inch NPTF (taper thread)Installation method: flange ⌀54 mmType of pumped liquid: diesel, sea water
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
