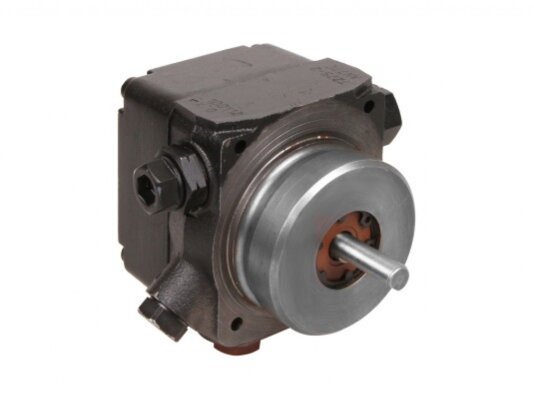

Suntec AN 77 A K 7266 2P burner pump
Suntec
Número de pieza alternativo
Baltur 0005060112
Precio: DOP 14300
Características
Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withPump series: AN: base valve with locking functionReturn pressure: 2 barTorque: 0.14 N·mMaximum rotation speed: 3,600 rpmNominal rotation speed: 2,850 rpmStrainer: Open area: 20 cm²Strainer: Opening size: 150 µmOperating viscosity: from 1 to 75 mm²/sOil temperature: from 0 to 60 °C in the pumpFactory pressure setting: 14 barNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmInlet pressure: 2 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchConnection type: G 1/4"Type of pumped liquid: diesel, keroseneInstallation method: sleeve ⌀54 mm
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
