Características

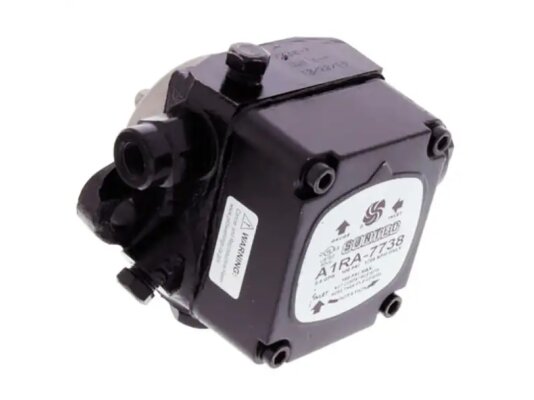

Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemPump series: A1RAReturn pressure: 0.7 barTorque: 0.14 N·mMaximum rotation speed: 3,450 rpmNominal rotation speed: 1,725 rpmStrainer: Open area: 20 cm²Strainer: Opening size: 150 µmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: without electromagnetic valvePerformance at 7 bar pressure and 5 cSt viscosity: 9 l/hShaft design: one cavityNozzle pressure range: from 7 to 10 barShaft diameter: 8 mmInlet pressure: 0.7 barType of pumped liquid: diesel, kerosene, waste oilInstallation method: flange ⌀54 mmNozzle outlet: ¼ inch
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
