Descripción

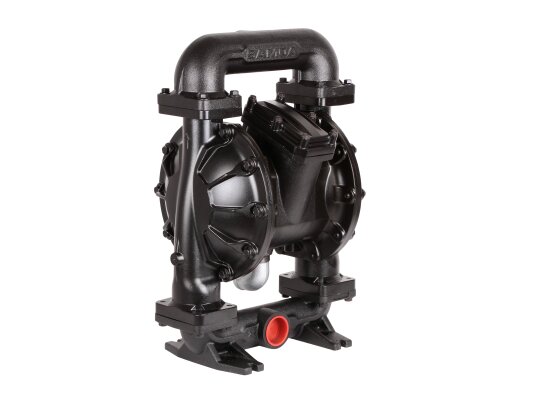

Samoa UP20A double diaphragm pump, art.: 554510.
Reciprocating positive displacement pump with pneumatic control and two working chambers. It can be installed for submerged operation, for self-priming operation. It is also possible to mount it for immersion in liquid.
Características
Número de pieza del fabricante: 554510Type of pumped liquid: AdBlue, diesel, oil, biodiesel fuel blend B10, biodiesel fuel blend B20, biodiesel fuel blend B5, gasoline, biodiesel, kerosenePump type: pneumaticInstallation location: into the suction line, in the main pipeline, to the tankBuilt-in coarse filter: yesRecommended liquid temperature: from 10 to 90 °CMaximum working pressure: 8 barMembrane material: high трелMaximum air pressure: 8 barScope of application: fuel, oilAir consumption at the inlet at a pressure of 7-8 bar: 80 - 110 l/minOperating pressure range: from 1.5 to 8 barNoise level: 85 dBOperating temperature range: from 0 to 70 °CMaximum performance: 650 l/minExplosion-proof design: is missingAir outlet thread: 1 1/2 inch NPT (F)Feature of the working mechanism: diaphragmaticContinuous operating time: unlimited timeCounter: missingAir intake threading: 3/4 inch NPT (F)Maximum particle size: 6.4Air inlet connection: 3/4 inch NPT (F)Suction height: 5 m - 8 mMaterial type: aluminiumOutput connection: 2" BSP (F) / 2 inch NPT (F)Input connection: 2" BSP (F) / 2 inch NPT (F)
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
