Características

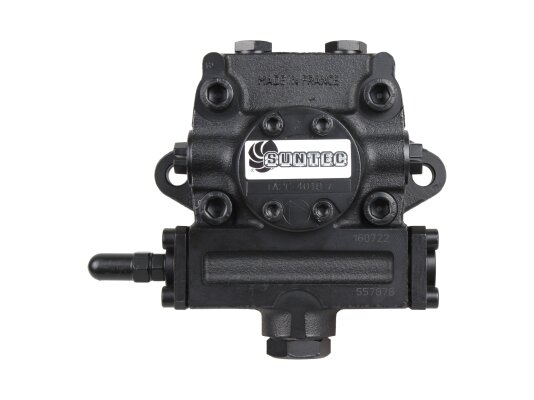

Número de pieza del fabricante: 3006157Operating viscosity: from 3 to 75 mm²/sPerformance at 30 bar pressure and 75 cSt viscosity: 530 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 400 l/hBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withVacuum gauge port: ¼ inchPressure gauge port: ¼ inchPump series: TA: Pressure controlReturn pressure: 5 barTorque: 0.3 N·mMaximum rotation speed: 3,600 rpmNominal rotation speed: 2,850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftValve function: pressure regulatingModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpShaft design: one cavityFactory pressure setting: 30 barNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmInlet pressure: 5 barSuction and return line: ½ inchNozzle outlet: ½ inchInstallation method: flange ⌀54 mmType of pumped liquid: sea water, diesel
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
