Descripción

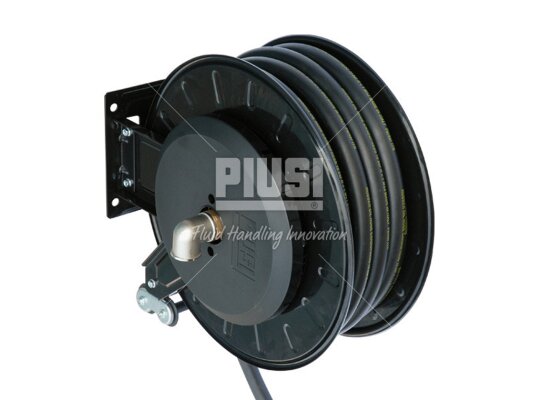

The durable Hosereel with hose 15 x 1” XL fuel hose reel is supplied with a refueling hose included. It is manufactured by the Italian company Piusi, whose motto is: "reliability, ease of use and versatility".
Application area
The 15-meter fuel hose reel is supplied with the longest inch hose in the entire series. It is used on fuel tankers and fuel dispensing modules for refueling large-sized diesel equipment, such as quarry dump trucks and excavators.
Completeness
This fuel hose reel is assembled from:
- a gasoline-oil resistant hose 15 meters long, with a passage diameter of 1 inch (25mm), with a metal tip in the form of a fitting for screwing on the refueling gun;
- a winding drum with a mechanism for automatic winding of the fuel hose;
- a mounting bracket, allowing you to mount the reel on various surfaces in a convenient working position;
- a special device with guide rollers, with which the hose is evenly laid and held on the spool.
The drum body provides an angular coupling with an internal thread for mounting the unit to the pressure part of the pipeline.
We recommend: purchasing a swivel support for quickly changing the unwinding direction, which can be ordered additionally when purchasing.
Design advantages
- Made of stainless steel and coated with a durable paint, the structure is absolutely resistant to corrosion.
- The automatic return mechanism of the refueling hose allows for single-person service of the complex.
- Thanks to the side protection of the drums, hand injury due to accidental contact with rotating parts is excluded.
- Precisely calculated parameters of the hydraulic system ensure minimal fuel pressure loss.
