Descripción

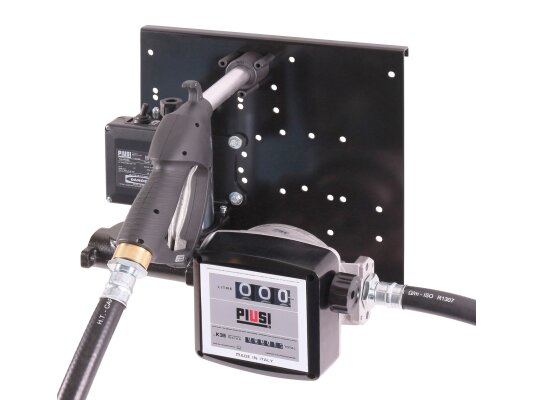

Piusi ST Panther 56 K33 F00385P0A The speakers of this modification operate from 220 V power sources. This mini gas station for diesel fuel pumping has a power of 370 Watts and provides a pumping rate of 56 l/min at a pressure of 3 Bar in the fuel line. It has the best performance in terms of head among models of this type - fuel delivery is 15 m.
The package includes:
- self-priming vane pump;
- mechanical counter with a measurement error of no more than 1%, having two scales (resettable and cumulative);
- manual fuel nozzle with a swivel joint;
- bottom filter with a check valve.
The main advantages of this mini gas station:
- can operate continuously without time restrictions;
- ease of installation;
- reliability;
- mobility;
- compactness. The weight of the structure is 16 kg.
- The quality of the materials used in production allows this refueling unit to be used in a wide temperature range - from -30 to +45 degrees.
Important information: the suction hose is not included in the package, it must be purchased separately. If fuel purification is required, it is possible to add a filter.
Italian mini gas stations ST Panther 56 K33 are an excellent choice for businesses with a small fleet of vehicles, car repair shops and agricultural enterprises.
Características
Maximum performance: 56 l/minElectric power: 420 WNoise level: 75 dBPressure: 3 barNominal speed: 2,900 rpmBypass valve in the pump: yesAmperage: 35 AOperating temperature range: from -30 to 45 °CSelf-priming pump: yesPistol type: manual, with a swivel couplingSleeve diameter: 3/4 inch (19 mm)Calibration capability: yesBottom filter included: yes, with a check valveFine filter included: noInstallation location: AnyType of pumped liquid: dieselAccumulator scale resolution: 999,999 lCounter: mechanicalWarranty: 12 monthsCorpus: openContinuous operating time: up to 30 minSwitch: with a light indicatorDegree of protection: IP55Pressure: 15 mSuction hose: not includedPower cord length: wirelessBit depth of the reset scale: 999 lHigh-pressure hose: 4 mError: 1%Voltage: 12 VSuction height: 5 mCurrent frequency: 50 Hz
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
