Piusi DRUM EX50 12V DC ATEX Fuel Dispensing Pump + manual nozzle

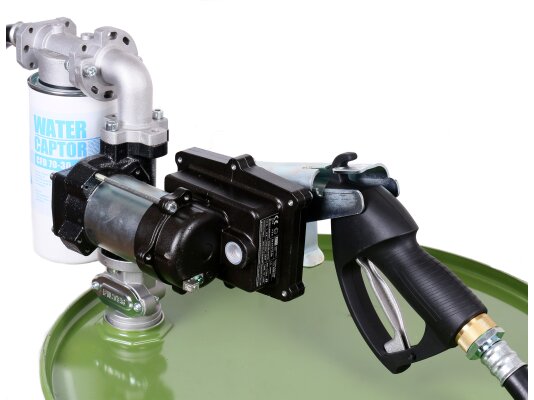

The DRUM EX50 12V DC ATEX gasoline, diesel and kerosene refueling column with a manual pistol is a refueling module for pumping and dispensing fuel directly from a standard 200 l drum.

The fueling module of this model cannot be used for aviation fuel, aqueous solutions and liquid food products.

It is not designed for continuous operation. It requires a minimum one-hour shutdown every 30 minutes. It is characterized by достаточно high performance up to 50 l/min. Power is autonomous - from a 12 V battery. The voltage should not deviate from the nominal value by more than +/- 5%.

The package includes:

• a cast iron explosion-proof self-priming pump with a bypass and thermal protection;
• a manual dispensing tap with a holder and swivel coupling;
• a telescopic suction pipe;
• a check valve;
• a 4 m pressure hose;
• a filter with a water separator for fine cleaning;
• a 2” adapter for mounting on a drum with a built-in coarse filter.

The main advantages of this fueling module:

• достаточно low price for a fueling module with such characteristics;
• minimal requirements for operating conditions;
• ease of replacement of parts and installation of additional equipment;
• long service life and good failure rate indicators;
• energy independence.

Possible area of application

This refueling column is suitable for non-commercial refueling of various equipment and vehicles at any production facilities, regardless of their location and the availability of power grids. It is permissible to use it in areas where there is a certain probability of an explosive situation (zone 1), for example, at gas stations and in car repair shops.
