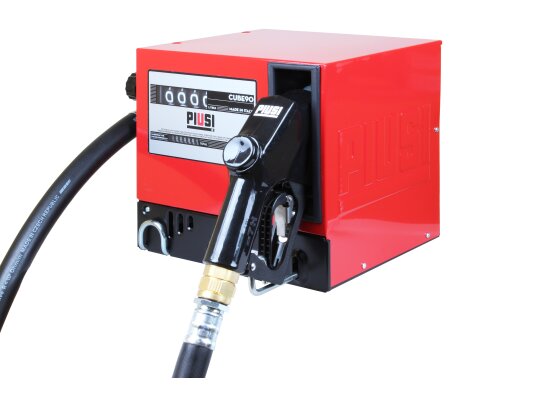

Mini petrol station Piusi CUBE 90

CUBE 90 is a full-fledged mini gas station for diesel fuel transfer. The column is designed for in-house use. It can be installed on a wall, a special pedestal, or any fuel tank. Power supply - 220V mains, performance - 90 l/min.

Even with a limited work cycle (30 minutes), you can pump 2.7 m3 of fuel in continuous mode.

Column equipment

The working units of the column are protected by a steel box with anti-corrosion coating. Inside the case are:

• A vane electric pump with a built-in bypass. The pump is self-priming and mounted on anti-vibration supports.
• An asynchronous motor with thermal protection.
• A mechanical disc meter with two scales. Resettable - for monitoring the current operation (4 digits), cumulative - 8-digit. Metering error does not exceed 1%. Calibration screw.

In addition:

• The mini gas station for diesel fuel transfer is equipped with a high-pressure hose and an automatic pistol. A swivel connection prevents the hose from twisting and kinking.
• The case has a mounting seat for a tap with a lever for automatic pump start/stop. At the inlet - a mesh filter for primary fuel cleaning.
• On the front wall of the case there is a switch with an indicator light. The kit also includes a bottom filter with a check valve, which increases the suction height.

Advantages of the model:

• Different installation methods make the column versatile.
• High flow rate allows you to quickly refuel a large amount of equipment.
• The column can be used in dusty and splashy conditions (protection class IP44).
• The model is adapted to operate in the range from -30 to +60 degrees C.

Additionally

It is possible to upgrade the refueling unit with a filter-separator and a suction hose.
