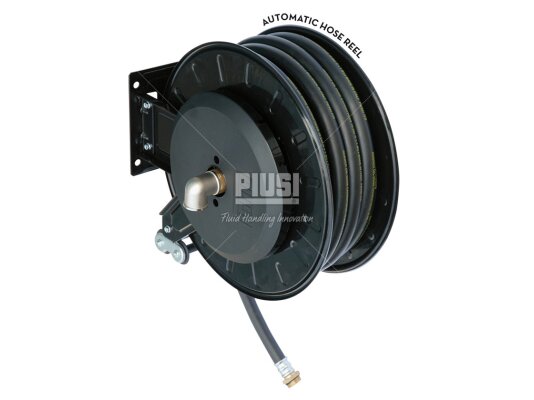

Piusi BIG GASOLINE hose reel 10x3/4”

The Hosereel model automatic drum with hose 10 x 3/4” BIG GASOLINE (gasoline and diesel) with a fuel dispensing hose included, is designed and manufactured by the Italian company Piusi, which has been successfully operating in this market segment since 1953.

Application area

The 10-meter fuel hose reel is the only one in the entire series that can be used for both diesel and gasoline. It is used on tank trucks and fuel dispensing modules to perform non-standard fuel dispensing operations at a distance of up to 10 m.

Completeness

The design of the fuel hose reel consists of:

• a gasoline and oil resistant hose 10 meters long, with an internal diameter of 3/4 inch (19 mm), with a metal tip-fitting for mounting the refueling tap;
• a working drum with a mechanism for automatic return of the fuel hose;
• a mounting bracket that allows you to fix the reel on any suitable surface in a position convenient for work;
• a lever with two guide rollers, which provides even winding and retention of the hose on the spool.

An angular coupling with an internal thread is located on the drum axis for convenient connection of the automatic reel to the pressure part of the pipeline.

Additionally we recommend: ordering a swivel support to adjust the unwinding direction.

Advantages of the design

• The materials used in the manufacture of the structure, namely stainless steel and durable paintwork, eliminate corrosion damage to the assembly.
• The automatic return mechanism of the refueling hose allows one person to service the entire complex.
• Correctly calculated dimensions of the hydraulic system practically reduce to zero the loss of pressure of the working fluid.
• Made of durable but safe plastic, the side protection of the drum protects hands from accidental contact with rotating parts of the mechanism.
