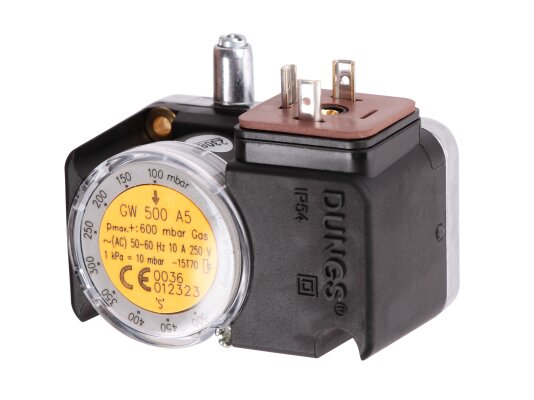

Lamborghini GW 500 A5 pressure switch
Lamborghini04042220
Número de pieza alternativo
Lamborghini Z304042220
Precio: DOP 5400
Descripción
Lamborghini GW 500 A5 pressure switch, art. 04042220:
Features and parameters:
- maximum system pressure up to 0.6 bar;
- fast response to pressure changes;
- for air and neutral gases of families I-III;
- wear-resistant, corrosion-resistant components;
- aluminum die-cast base, polyamide housing;
- sensitive membrane made of hydrocarbon-resistant NBR rubber;
- electrical connection via DIN connector;
- protection of components against dust and moisture ingress class IP 54;
- Operating temperatures: -15....+70 °C (exclude icing, condensation).
Características
Número de pieza del fabricante: 04042220Maximum working pressure: 600 mbarResponse range: from 0 to 25 mbarAdjustment range: from 100 to 500 mbarOperating ambient temperature: from -15 to 70 °CType of connection: DIN plugFor controlling: excess pressure and vacuum pressureDegree of protection: IP54Working environment: air, neutral gases
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
