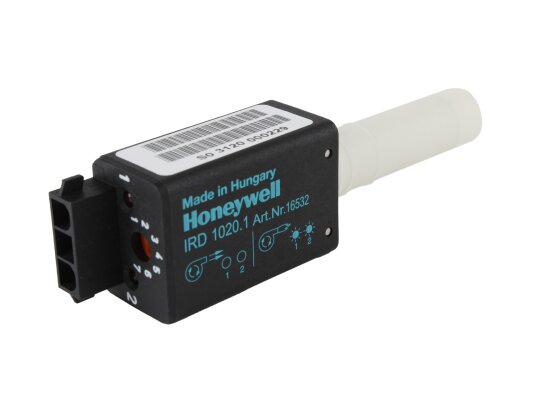

Honeywell IRD1020.1 AXIAL BLUE flame detector

Honeywell IRD1020.1 AXIAL BLUE flame sensor, art: 16532 is used in safety systems for liquid and gas burners. It is responsible for recognizing infrared radiation of blue and yellow flames and transmitting a flame detection signal to the terminal block. The photosensitive element is placed in a sealed glass housing.

Parameters and features:

• recognition of IR radiation;
• frontal visibility;
• dust and moisture protection of the sensitive element according to IP 41 standard;
• connecting cable for connection to the terminal;
• sensitivity adjustment;
• plug-in connection type;
• magnetic flange for mounting;
• LED indication of operating states and settings;
• insensitivity to external light sources (fireproof gasket, spark from the ignition transformer).

The Elco IRD flame sensor is designed for temperatures not exceeding +60 °C. During installation, it is necessary to place the sensor as close as possible to the flame. It is required to exclude vibration and mechanical impact on the instrument housing.
