Descripción

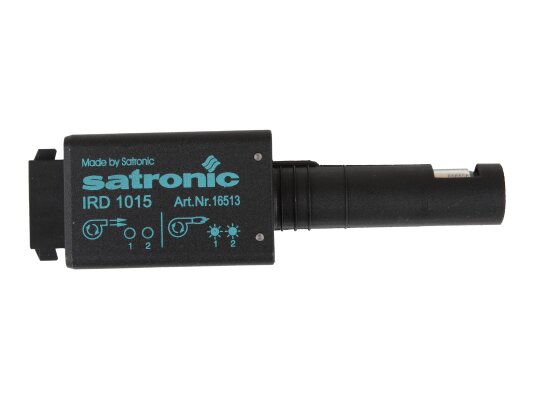

The Honeywell IRD 1015 flame detector, art: 16513, monitors flame combustion by detecting infrared flickering light. Suitable for equipping burners burning gas, liquid fuel and with a combined combustion system, operating in a continuous cycle. It works with the Satronic/Honeywell burner control system. If the manufacturer's recommendations for operating conditions are followed, the sensor does not wear out and is designed for many years of service.
Features and main parameters:
- recognition of only flickering light;
- increased sensitivity;
- adjustable sensitivity, range: 1-20 lux;
- side visibility (measurements on the left);
- maintenance-free;
- fast response;
- application in gas, liquid fuel and combined burners;
- compact dimensions, possibility of installation in any burner;
- LEDs on the housing to indicate sensor operation;
- mounting on a mounting magnetic flange.
Constant radiation (from refractory brick) does not affect the sensitive element.
Installation
During installation, it is necessary that the detector receives the most intense flame light. Therefore, the sensor is located as close as possible to the flame or using a special tube directing it to a specific flame zone. It should exclude the ingress of light from external sources onto the sensor. During installation and operation, it is necessary to avoid exceeding the permissible temperatures, strong vibrations and shocks to the sensor.
