Descripción

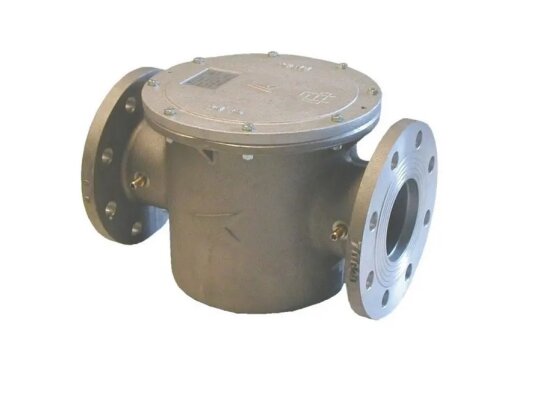

The Giuliani Anello 70650F/6B gas filter, art: 007.0055.100 cleans the flow from dust, solid particles, foreign impurities, resinous substances, which contributes to maintaining the tightness of the valves, safe operation of gas equipment.
Features:
- installation in gas-consuming equipment with a gas pressure of up to 6 bar;
- purpose – cleaning gas from dirt particles of 50 μm or more;
- material of the filter insert – Viledon;
- high-strength cast aluminum alloy body;
- operating temperatures: -10...+80 °C;
- mounting with DN 125 flanges;
- mechanical strength in accordance with UNI-EN161 (group 2).
Working environment
Giuliani Anello gas filters for burners are designed for cleaning natural gas, town gas, liquefied gas and other non-aggressive media.
Características
Número de pieza del fabricante: 007.0055.100Operating ambient temperature: from -10 to 80 °CMaximum working pressure: 6 barFuel type: gaseousTypes of gases used: natural gas (methane group H), town gas (domestic), liquefied gas (LPG) and non-aggressive gasesFilter grade: 50 µmMaterial type: aluminiumConnection type: DN 125
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
