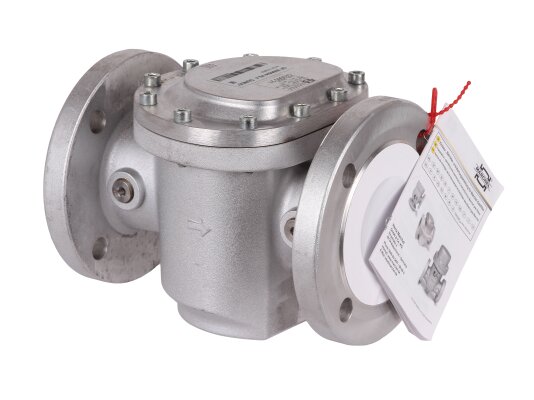

Gas and air filter Dungs GF 60065/4 VS 4 x G1/4"

GF 60065/4 VS 4 x G ¼ – a gas-air filter for equipping industrial gas installations. It is characterized by high dust capacity, corrosion-resistant design, and flanged connection. Complies with DIN 3386 standard.

Main parameters and features:

• application in systems with a flow rate of up to 20 m/s;
• effective removal of solid particles, dust, foreign impurities;
• filtering capacity: 50 μm;
• maximum gas pressure in the system: 6 bar;
• cast construction made of an alloy resistant to gas composition, mechanical influences, and corrosion;
• modification with flanged connections according to DIN EN 1092-1;
• measurement ports on the housing for monitoring the degree of filter contamination.

Working environment

The filter is suitable for working with gases of group 1, 2, 3 and other neutral gaseous environments.

Scope of application

The filter is installed in atmospheric gas burners, gas burners with forced draft, industrial boilers, furnaces and other heat generators.
