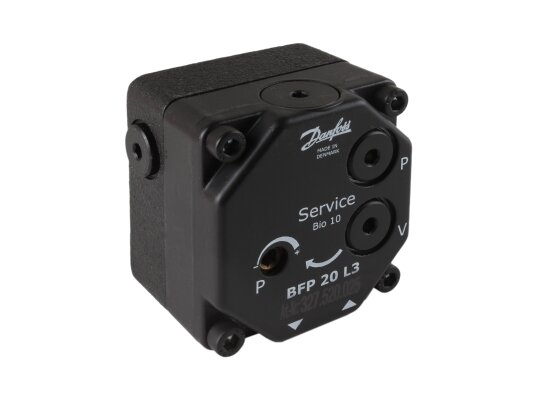

Danfoss BFP20L3 071N0168 burner pump
Danfoss
Número de pieza alternativo
Oilon 34024259
Precio: DOP 23200
Características
Strainer: Open area: 11 cm²Fuel consumption: 24 l/hReturn pressure: 2 barTorque: 0.12 N·mMaximum rotation speed: 3,450 rpmNominal rotation speed: 1,400 rpmSolenoid valve consumption: 9 WStrainer: Opening size: 200 µmFactory pressure setting: 10 barShaft diameter: 8 mmInlet pressure: 2 barSuction and return line: ¼ inchDirection of rotation (looking at the drive shaft): L: counterclockwise rotationSolenoid valve voltage: 220-240V~, 50-60HzVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchNozzle outlet: ⅛ inchNozzle pressure range: from 7 to 20 barConnection type: G 1/4"Operating viscosity: from 1.3 to 12 mm²/sModel type: 1 stage with electromagnetic valveDegree of protection: IP40Type of pumped liquid: gasoline, kerosene
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
