Descripción

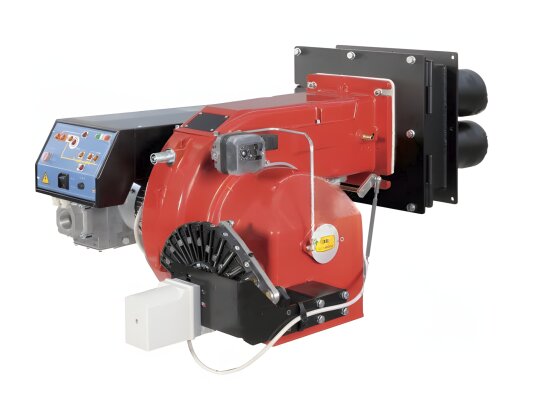

These burners were designed for use on boilers with very short combustion chambers, where the boiler walls or tube bundles are in immediate proximity to the flame. The flame was divided into four combustion heads, resulting in a significant shortening of the flame length.
0 = 2 valves.
VS = short-flame burners.
Características
Fuel type: gasolineBurner power: from 332 to 1,100 kWRamp gas pressure: from 4.9 to 39.8 mbarGas consumption: from 35 to 116 nm³/hCounterpressure: from 0 to 12 mbarElectric motor: 1,500 WElectrical power consumption: 2,000 WOperating temperature: from -10 to 50 °CThe length of the flame pipe: 195 mmDegree of protection: IP40Included accessories: with a combustion head and with a gas rampFlame pipe type: standardConnection type: Rp 2"Burner type: progressive-mechanicalVoltage: 380 V
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
