Descripción

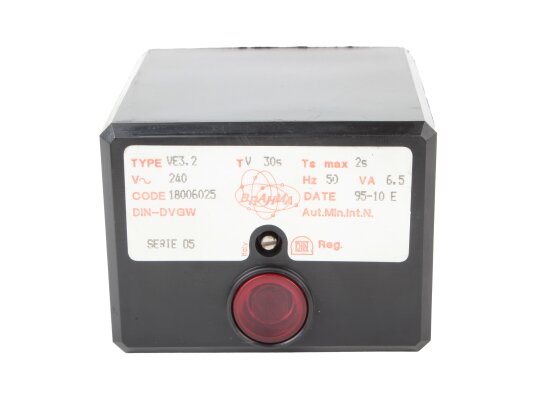

The Brahma VE3.2 18006025 burner automation system controls ignition and combustion processes during operation of a forced-draft gas burner with one or two stages of power regulation. It monitors flame presence for timely response to threats. It interrupts gas supply in case of voltage loss or flame extinction, ensuring safe operation of the burner installation. The controller is manufactured according to European standards.
Features:
- application as part of forced-draft gas burners;
- for systems with an intermittent duty cycle;
- controllable restart every 24 hours of operation for self-diagnosis of malfunctions;
- precise microprocessor control;
- power supply from the mains: 2400V, permissible deviation -15%, +10%;
- built-in voltage surge protection device;
- continuous flame monitoring;
- fast response to flame loss, response time < 1 s;
- fault notification using an emergency alarm;
- compact housing made of impact-resistant, heat-resistant plastic;
- degree of protection against dust and moisture ingress IP40;
- operation at ambient temperatures -10...+60 °C;
- installation in any position;
- simple installation and connection, flexible wiring;
- short circuit protection;
- service life: 250,000 cycles;
- without a base in the package.
We offer burner automation systems for gas burners of various power, type, and application areas. For additional information on equipment specifications, please contact ANKAS managers.
Características
Safety time (ts): 2 sPre-ventilation time (tv/tp): 30 sOperating ambient temperature: from -10 to 60 °CBurning method: turbochargedOperating mode: intermittentPresence of a plinth: noBurner type: one-stage or two-stageFuel type: gaseousDegree of protection: IP40Voltage: 220 V
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
