Descripción

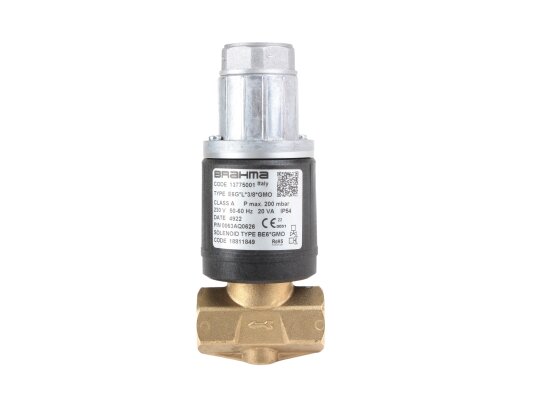

The Brahma E6G*L*3/8*GMO 13775001 gas electromagnetic valve is used to equip automatic gas supply control systems for combustion. It provides a tight and fast shut-off of the flow, ensuring the safe operation of the gas-using installation. It is designed for a supply line pressure of 200 mbar and a wide range of operating temperatures. Complies with class A of EN161 standard.
More about the Brahma E6G electromagnetic valve
The Brahma E6G normally closed valve is assembled in a cast brass housing that is resistant to corrosion, temperature changes, and mechanical influences. It complies with the IP54 dust and moisture protection standard and can be operated in ambient temperature conditions of -10...+60°C.
The gas electromagnetic valve is connected to an AC power supply, but due to the built-in rectifier circuit, it operates on DC, which ensures quiet operation of the device.
Features and characteristics:
- normally closed valve type;
- for combustion systems with gas pressure up to 200 mbar;
- supply voltage: 230 V, frequency 50-60 Hz;
- working medium – gas family 1-3 and other neutral gases;
- virtually silent operation;
- fast closing, response time < 1 sec.;
- version with slow opening;
- degree of protection against dust and moisture – IP 54;
- Rp 3/8" threaded holes for mounting in the system;
- maximum gas flow rate – 3.9 m3/h;
- connection with screw terminals;
- installation on horizontal and vertical gas pipelines.
Installation
Brahma E6G gas electromagnetic valves are installed by qualified personnel. It is required to align the indicator on the housing with the direction of flow. It is not allowed to allow foreign objects and dirt to enter the device, as well as use in systems with pressure exceeding 200 mbar.
Advantages:
- compact design with a cast brass housing;
- reliable protection against dust, water splashes;
- silent operation;
- fast and reliable connection;
- wide range of operating temperatures.
We can buy Brahma E6G gas electromagnetic valves with other connection parameters and connection type. You can clarify the characteristics with ANKAS specialists.
