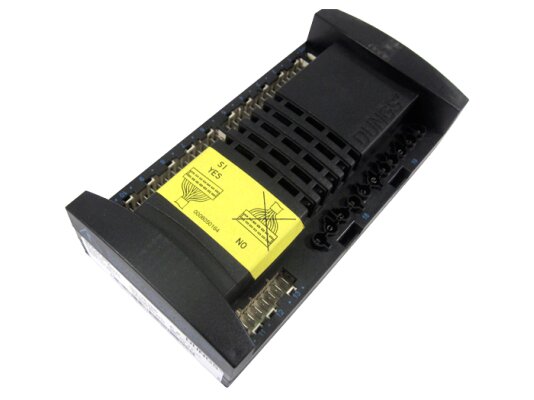

The Dungs MPA22 S02 - TBG LX combustion manager, art: 0006020423 ensures safe burner start-up, emergency stop in case of threats and malfunctions, and flame combustion control. It is designed for equipping two-stage gas and combined burners.
Main characteristics and functions:
- control of gas/combined forced-air burners;
- power supply from 220-240 V, 50-60 Hz network;
- non-constant cycle, periodic restart every 24 hours for self-diagnosis;
- built-in microprocessor, accurate command execution sequence;
- dust and moisture protection level IP20 (the required degree of protection is achieved by installation);
- fast response to flame loss;
- possibility of connection to the e-BUS;
- flame control, gas valve operation;
- housing made of impact-resistant heat-resistant plastic, complete with a base;
- connectors for electrical connection;
- voltage surge protection system (safe shutdown, restart);
- manual/remote unlocking;
- indication system for tracking the operating stage, informing about failures;
- access to system settings via password.
Operating conditions
Dungs MPA combustion managers are designed to operate in temperatures: -20…+60 °C. During installation, the device must be protected from exposure to moisture and condensation.
Características
Número de pieza del fabricante: 0006020423Safety time (ts): 2 - 5 sOperating ambient temperature: from -20 to 60 °CBurning method: turbochargedOperating mode: intermittentPresence of a plinth: yesDegree of protection: IP20Burner type: two-stageFuel type: gaseous or combinedVoltage: 220 V
