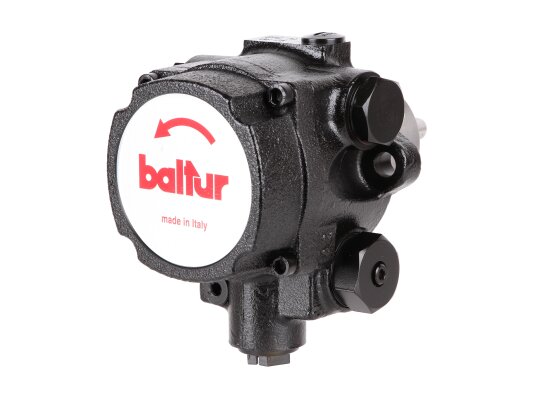

Italpump G 7A burner pump
Baltur0005060115
Número de pieza alternativo
Baltur 0005060106
Precio: DOP 67500
Características
Número de pieza del fabricante: 0005060115Nozzle outlet: ¼ inchPerformance at 20 bar pressure and 5 cSt viscosity: 350 l/hFuel consumption: 370 l/hSolenoid valve voltage: 220-240V~, 50-60HzVacuum gauge port: ½ inchPressure gauge port: ⅛ inchReturn pressure: 4 barTorque: 0.3 N·mMaximum rotation speed: 3,480 rpmNominal rotation speed: 2,800 rpmStrainer: Open area: 142 cm²Strainer: Opening size: 100 µmOperating viscosity: from 2.8 to 70 mm²/sOil temperature: from 0 to 70 °C in the pumpFactory pressure setting: 12 barNozzle pressure range: from 7 to 25 barInlet pressure: 4 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ⌀54 mmType of pumped liquid: sea water
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
