Características

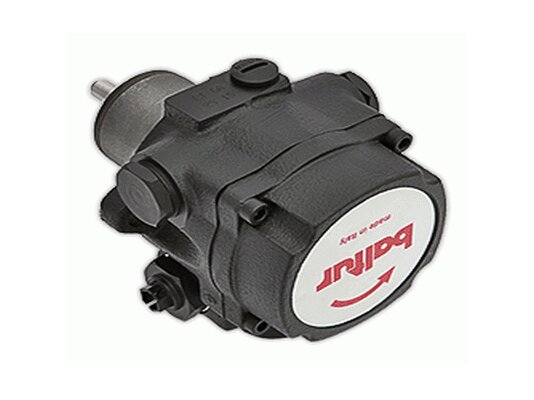

Número de pieza del fabricante: 0005060105Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 20 bar pressure and 5 cSt viscosity: 280 l/hFuel consumption: 300 l/hBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaVacuum gauge port: ½ inchPressure gauge port: ⅛ inchReturn pressure: 4 barTorque: 0.3 N·mMaximum rotation speed: 3,480 rpmNominal rotation speed: 2,800 rpmStrainer: Open area: 142 cm²Strainer: Opening size: 100 µmOperating viscosity: from 2.8 to 70 mm²/sOil temperature: from 0 to 70 °C in the pumpShaft design: two cavitiesFactory pressure setting: 12 barNozzle pressure range: from 7 to 25 barInlet pressure: 4 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ¼ inchConnection type: G 1/2"Installation method: flange ⌀54 mmType of pumped liquid: sea water
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
