Descripción

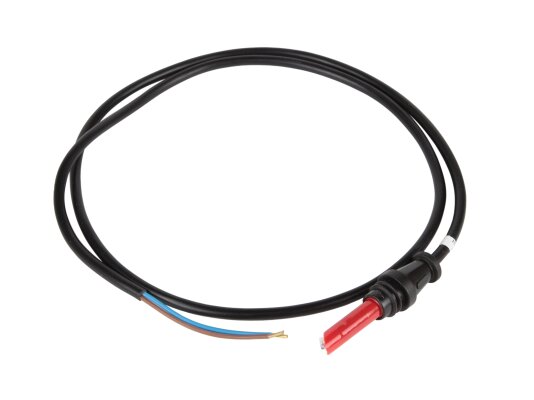

The Baltur FT13/R 18209057 flame sensor operates when connected to the burner automation unit, together with which it controls flame combustion and ensures the safe operation of the combustion system. Thanks to the soft plastic fastener, it is securely attached to the burner.
Operating parameters and features:
- average spectral sensitivity, range 1.5-6.5 lux;
- side and frontal visibility;
- attached cable with insulated conductive cores;
- power cable length for connection to the burner controller – 1000 mm;
- durable housing made of impact-resistant material;
- dustproof design;
- small housing dimensions;
- operating temperature range: 0...+60 °C;
- simple and reliable fixation to the burner;
- vibration resistance thanks to the soft plastic insert;
- service life – 50,000 hours subject to operating conditions;
- stripped power cable end.
More about the Brahma FT13/R sensor
The sensor is equipped with a light-sensitive photocell, a compact plastic housing, a locking polymer insert, and a 2-core connection cable for connection to the control unit. The photocell reacts to the radiation of the burner flame burning liquid, pellet fuel, or wood. Measurements are taken with side and direct illumination.
Características
Número de pieza del fabricante: 0005030334Total length of sensor: 66.7 mmLength of power cable: 1,000 mmSensitivity range: from 1.5 to 6.5 lxFixing seal: plasticDirection of illumination: frontal and lateralFlame sensor type: infrared
La información sobre las características técnicas, la apariencia y el color del producto es solo de referencia y se basa en la información más reciente disponible en el momento de la publicación
